Hamilton
Sorter's sturdy aluminum framed consoles provide the ideal basis for your copy
center, kit building or literature fulfillment area. Any sort modules, platforms.
or overhead storage units for processing large volumes of paper documents. Hamilton
Sorter is available on GSA schedule. Sort
Module Specifications - Sort
shelves re-adjust along full depth rigid PVC plastic channel guides that allow
for easy shelf adjustment.
-
Adjustable Plastic Shelving: Constructed of 1/8" thick .90 gauge polyethylene
with memory retention. Shelves are adjustable on 1" increments that provide
full depth support. Shelves are supported front and rear with aluminum index track
and clear index cover and are rated for capacity loads up to 35 lbs.
-
Adjustable Wood Shelving: Constructed of 5/8" thick matching thermally fused
melamine with 1.5mm PVC edge banding. Shelves are adjustable on 1" increments
and have optional self-applying index strips. Shelves are rated for capacity loads
up to 50 lbs.
-
Sort modules come in 1 to 6 column configurations. Modules up to 30" high
feature 5 re-adjustable shelves providing 6 openings. Modules over 30" high
feature 7 re-adjustable shelves providing 8 openings. Additional shelves can be
purchased separately or in packs of five.
-
Sort modules are available in standard closed back, open back for pass through
operations and plexiglass back for additional working light.
-
Sort modules available standard, legal or oversize configurations for standard
81/2 x 11 size documents, legal size documents and oversize documents like newspapers
and periodicals.
-
Sort Module Shelf Inside Dimensions:
- Standard
size shelf inside dimensions: 10-1/8" width x 12" depth
-
Legal size shelf inside dimensions: 10-1/8" width x 16" depth
-
Oversize shelf inside dimensions: 12-1/8" width x 16" depth
Construction
-
Side Panels: Constructed of 1" thick industrial grade 40-50 lb. substrate,
double-faced melamine. Framed by matching 1.5mm PVC edge banding.
-
Top and Bottom Panels: Constructed of 5/8" thick industrial grade 40-50 lb.
substrate, double-faced melamine. Framed by matching 1.5mm PVC edge banding.
-
Back Panel: Constructed of 5/8" thick industrial grade 40-50 lb. substrate,
double-faced melamine.
-
Vertical Dividers: Constructed of 5/8" thick industrial grade 40-50 lb. substrate,
double-faced melamine. Framed by matching 1.5mm PVC edge banding.
-
Sort modules are shipped fully assembled.
Assembly
-
Sort modules are assembled using Hafele mini-fix cam hidden fastener system with
metal-to-metal connection points. Parts are drilled using a 32mm hole drilling
via computer controlled point-to-point machines for insured uniformity and consistency.
-
Sort module affixes to Hamilton Sorter consoles with Hafele mini-fix cam lock
so that depth of sort module can be readjusted for varying user requirements.
Optional
Features -
Plexiglass doors in clear or smoked plexiglass with available locking feature.
-
Optional 3", 6", 12" or 18" risers for access to additional
console worksurface.
-
Optional display boards for locator lists.
-
Shelf dividers for partitioning of polyethylene shelving.
-
Module drawers for organizing worksurface items such as staplers, paper clips
and other loose items.
|
|

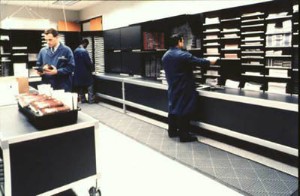

Mail
Room Sort Modules
|
Hamilton
Sorter Mail Room Sort Module
|
| |
Click to Enlarge
Download
Literature
HamiltonSorter.pdf
(260 kb)
Click
Here To Request Pricing or More Product Information Click
Here For Hamilton's Color Chart |
|
